Features:
Flexibility: Hexagonal wire mesh is known for its flexibility, allowing it to be easily bent, shaped, and conform to different surfaces and structures.
Strength: Hexagonal wire mesh has good strength and durability, especially when made with thicker wires or higher-quality materials such as stainless steel.
Ventilation: The open hexagonal pattern provides good ventilation, making it suitable for applications such as poultry pens and greenhouses.
Ease of Installation: Hexagonal wire mesh is generally easy to cut, shape, and install.

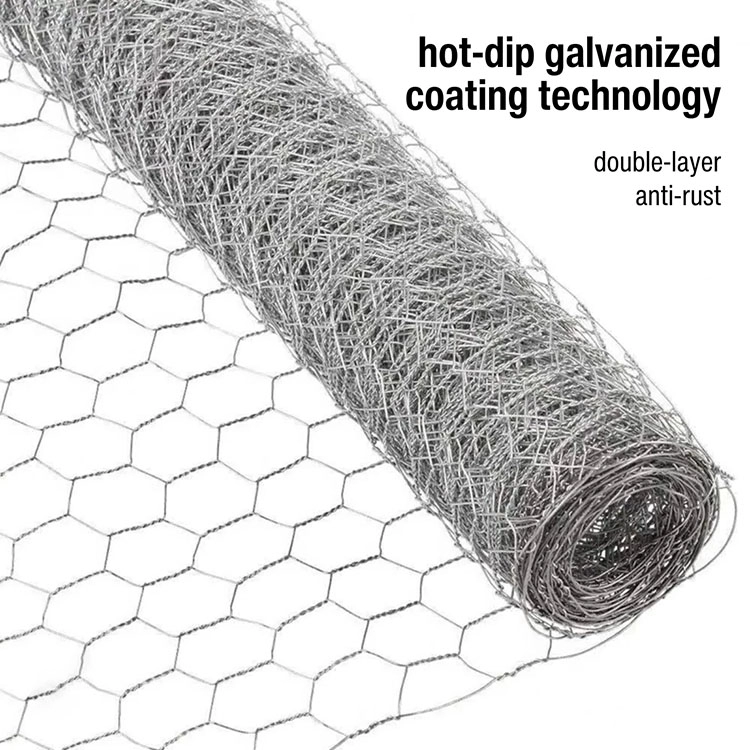

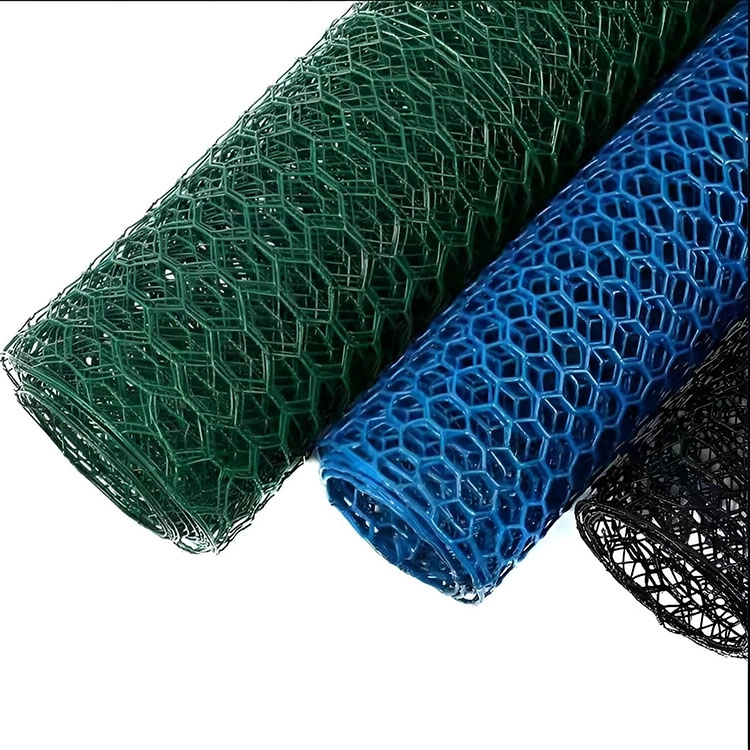

Material Selection: Common materials include galvanized steel (electroplated or hot-dip galvanized), PVC-coated steel, and stainless steel.
Common Applications:
Fencing: Used in poultry pens, garden pens, and animal enclosures.
Reinforcement: In construction, it can reinforce plaster, cement, and other materials.
Gabions: Filled with stone to form retaining walls and erosion control structures.
Landscaping: Used in landscaping projects to provide erosion control, decoration, and support for plants.
Protection: Protect equipment, machinery, and sensitive areas from damage or intrusion.
Industrial Uses: Used in industrial settings for a variety of purposes including thermal insulation and pipe protection.
Crafts: Used in a variety of creative projects.
| Mesh size | Wire gauge (BWG) | |
|---|---|---|
| inch | mm | |
| 3/8" | 10 | 32, 31, 30, 29, 28, 27, 26, 25, 24, 23, 22, 21 |
| 1/2" | 13 | 27, 26, 25, 24, 23, 22, 21, 20 |
| 5/8" | 16 | 32, 31, 30, 29, 28, 27, 26, 25, 24, 23, 22, 21 |
| 3/4" | 20 | 25, 24, 23, 22, 21, 20, 19 |
| 1" | 25 | 27, 26, 25, 24, 23, 22, 21, 20, 19, 18 |
| 1-1/4" | 32 | 23, 22, 21, 20, 19, 18 |
| 1-1/2" | 40 | 23, 22, 21, 20, 19, 18, 17 |
| 2" | 50 | 23, 22, 21, 20, 19, 18, 17, 16, 15, 14 |
| 2-1/2" | 65 | 21, 20, 19, 18 |
| 3" | 75 | 21, 20, 19, 18, 17, 16, 15, 14 |
| 4" | 100 | 19, 18, 17, 16, 15, 14 |
| Mesh size | Wire gauge (BWG) | |
|---|---|---|
| inch | mm | |
| 1" | 25 | 25, 24, 23, 22, 21, 20, 19, 18 |
| 1-1/4" | 32 | 23, 22, 21, 20, 19, 18 |
| 1-1/2" | 40 | 23, 22, 21, 20, 19, 18, 17 |
| 2" | 50 | 23, 22, 21, 20, 19, 18, 17, 16 |
| 3" | 75 | 20, 19, 18, 17, 16 |
| Mesh size | Wire diameter (mm) | |
|---|---|---|
| inch | mm | |
| 3/8" | 10 | 0.4 mm, 0.5 mm, 0.6 mm, 0.8 mm |
| 1/2" | 13 | 0.6 mm, 0.8 mm, 0.9 mm, 1.0 mm |
| 5/8" | 16 | 0.4 mm, 0.5 mm, 0.6 mm, 0.8 mm, 0.9 mm, 1.0 mm |
| 3/4" | 19 | 0.6 mm, 0.8 mm, 0.9 mm, 1.0 mm, 1.2 mm |
| 1" | 25 | 0.7 mm, 0.9 mm, 1.0 mm, 1.2 mm, 1.4 mm |
| 1-1/4" | 30 | 0.85 mm, 1.0 mm, 1.10 mm, 1.30 mm, 1.4 mm |
| 1-1/2" | 40 | 0.8 mm, 1.0 mm, 1.2 mm, 1.4 mm, 1.6 mm |
| 2" | 50 | 1.0 mm, 1.2 mm, 1.4 mm, 1.6 mm, 2.0 mm |
