Concertina razor wire is the most widely used razor wire type. It is combined with several continuous spiral razor wires. According to different structure, the concertina razor wire can be divided into following types:

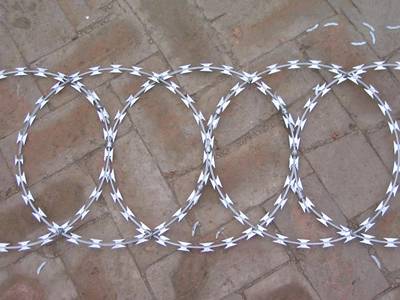

- Single coil concertina razor wire. Like the following picture CRW-01, the single spiral concertina wire is combined with several continuous single spirals, which has a singe structure. At the same covering area, the single spiral concertina razor wire has lighter weight than the double spiral concertina wire. It is much more economical to be used in the common security and protection applications.
- Double coil concertina wire. Connect the neighbor spiral by the clips, to form a new spiral and several continuous new spirals forms the double spiral concertina wire. This design can reduce the spacing between spirals and coils to improve the security coefficient than the single spiral concertina razor wire. It is widely used in the military sites, prison, airport and other places where needs high security.
| Item | Outer diameter (mm) | Coil quantity | Covering length (m) | Clip quantity | Razor wire types | Razor wire type |
|---|---|---|---|---|---|---|
| CRWS-01 | 450 | 33 | 7 – 8 | None | CBT-60, 65 | Single coil |
| CRWS-02 | 500 | 56 | 12 – 13 | None | CBT-60, 65 | Single coil |
| CRWS-03 | 700 | 56 | 13 – 14 | None | CBT-60, 65 | Single coil |
| CRWS-04 | 960 | 56 | 14 – 15 | None | CBT-60, 65 | Single coil |
| CRWS-05 | 450 | 56 | 8 – 9 | 3 | BTO-10, 12, 18, 22, 28, 30 | Double coil |
| CRWS-06 | 500 | 56 | 9 – 10 | 3 | BTO-10, 12, 18, 22, 28, 30 | Double coil |
| CRWS-07 | 600 | 56 | 10 – 11 | 3 | BTO-10, 12, 18, 22, 28, 30 | Double coil |
| CRWS-08 | 600 | 56 | 8 – 10 | 5 | BTO-10, 12, 18, 22, 28, 30 | Double coil |
| CRWS-09 | 700 | 56 | 10 – 12 | 5 | BTO-10, 12, 18, 22, 28, 30 | Double coil |
| CRWS-10 | 800 | 56 | 11 – 13 | 5 | BTO-10, 12, 18, 22, 28, 30 | Double coil |
| CRWS-11 | 900 | 56 | 12 – 14 | 5 | BTO-10, 12, 18, 22, 28, 30 | Double coil |
| CRWS-12 | 960 | 56 | 13 – 15 | 5 | BTO-10, 12, 18, 22, 28, 30 | Double coil |
| CRWS-13 | 980 | 56 | 14 – 16 | 5 | BTO-10, 12, 18, 22, 28, 30 | Double coil |
Specifications of concertina razor wire
- Material:
- Razor tape: high carbon or middle carbon steel sheet or stainless steel sheet.
- Core wire: high carbon or middle carbon steel sheet or stainless steel sheet.
- Clip: high carbon or middle carbon steel sheet or stainless steel sheet.
- Surface treatment: electric galvanized, hot dipped galvanized, PVC coating, powder sprayed.
- Outer diameter: 450 mm, 500 mm, 600 mm, 700 mm, 800 mm or 900 mm. Special spirals can be customized according to your requirements or specified applications.
- Coil quantity: commonly is 56 coils
- Razor type: BTO-10, BTO-12, BTO-18, BTO-22, BTO-28, BTO-30.
Package of concertina razor wire fence
The concertina razor wire can be packed in various types, the common packages are as follows:

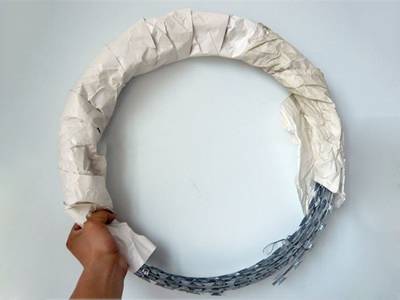

- Waterproof paper.
- Woven bag.

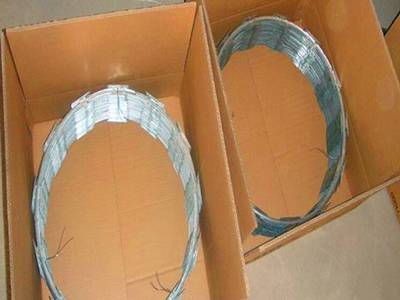

- Carton.
- Pallet.
- Other customized package.
Features of concertina razor wire
- High tensile strength.
- Corrosion and rust resistance.
- Good hardness.
- Good ductility.
- Anti-age. It can be used in the harsh environments with good property.
- Easy to install and uninstall.
- Durable and long service life.
Installation and warming tips of concertina razor wire

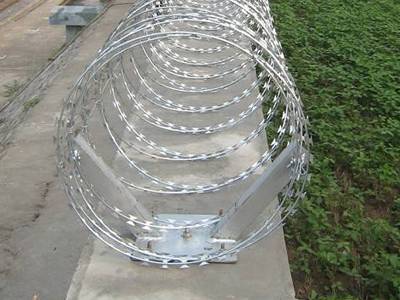

- The installation of concertina razor wire is simple and easy. Just fasten the concertina razor wire onto wall or holder, all the projects are completed.
- When you install the double spiral concertina razor wire, place an tension wire or barbed wire in the spiral coils. The barbed wire or tensile wire can fasten the concertina razor wire better, prevent concertina razor wire from being blown off and improve the protecting effect.

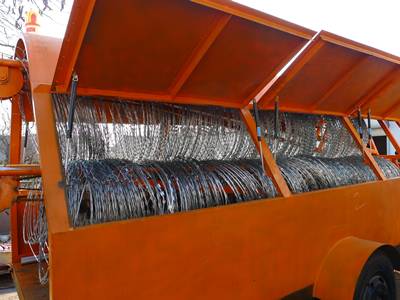

- In some emergent public events applications, such as activities of riots or demonstrators, activities of area police and military. You can adopt the razor wire tailor deployment system. It is an fast and safe system to pull out and pull back the razor wire in coil. It has automatic and semi-automatic types. We can supply you the whole system of trailer deployment. Just tell us your requirements and we will customize it for you.
Applications of concertina razor wire
- Concertina razor wire can be placed in the farmland to prevent people from destroy the farms.

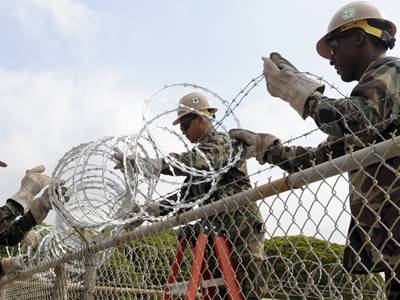

- Concertina razor wire can be used to protect military sites security.

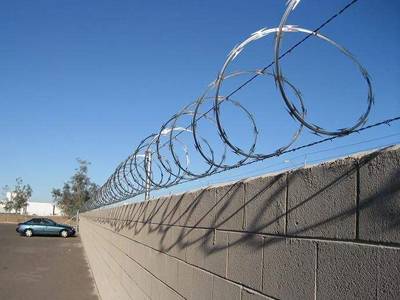

- Concertina razor wire can be installed at the top of the wall to protect residences safe.
- Concertina razor wire can be installed at various wire mesh fences to supply maximum safety coefficient.
- Concertina razor wire can be installed on the deck of ships to prevent pirate from attacking the ship.
