Stainless Steel Wire Mesh

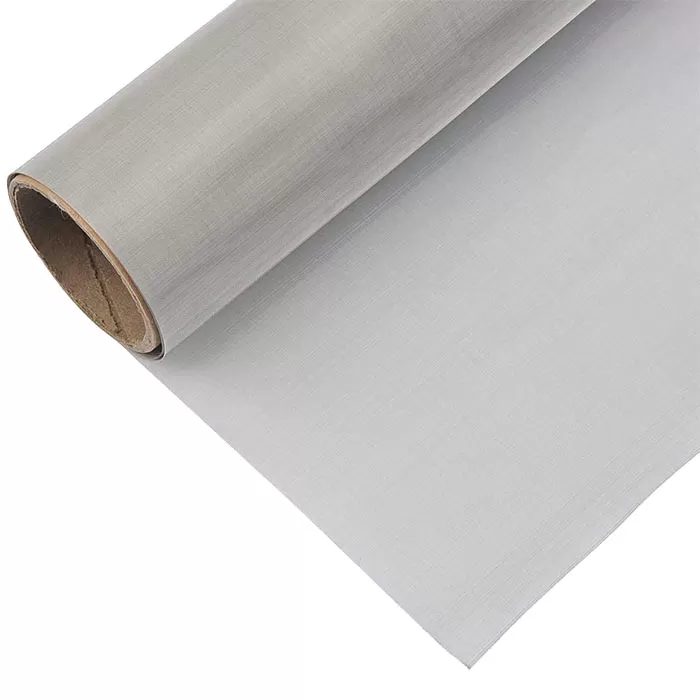

Stainless Steel Woven Wire Mesh

Stainless steel wire mesh is a mesh material made of stainless steel wire through a weaving process. It has the characteristics of corrosion resistance, high temperature resistance, high strength and long life. Common materials include 304, 316 and other stainless steels, which are suitable for different environments. For example, 316 is more suitable for highly corrosive occasions such as marine or chemical industries.

Product Inquiry

Stainless Steel Wire Mesh Specifications

Stainless steel wire mesh specifications are diverse, which can meet various needs such as filtration, screening, protection, decoration, etc., and are widely used in petroleum, chemical, construction, food processing and home furnishing. The surface of stainless steel wire mesh is smooth and easy to clean, meets hygiene standards, and has both aesthetics and functionality. It is an important material in industrial production and daily life.

Mesh	Wire diameter		Aperture/Opening		Open Area, %
Mesh	Inch	MM	Inch	MM
1X1	0.08	2.03	0.92	23.37	84.6
2X2	0.063	1.6	0.437	11.1	76.4
3X3	0.054	1.37	0.279	7.09	70.1
4X4	0.063	1.6	0.187	4.75	56
4X4	0.047	1.19	0.203	5.16	65.9
5X5	0.041	1.04	0.159	4.04	63.2
6X6	0.035	0.89	0.132	3.35	62.7
8X8	0.028	0.71	0.097	2.46	60.2
10X10	0.025	0.64	0.075	1.91	56.3
10X10	0.02	0.51	0.08	2.03	64
12X12	0.023	0.584	0.06	1.52	51.8
12X12	0.02	0.508	0.063	1.6	57.2
14X14	0.023	0.584	0.048	1.22	45.2
14X14	0.02	0.508	0.051	1.3	51
16X16	0.018	0.457	0.0445	1.13	50.7
18X18	0.017	0.432	0.0386	0.98	48.3
20X20	0.02	0.508	0.03	0.76	36
20X20	0.016	0.406	0.034	0.86	46.2
24X24	0.014	0.356	0.0277	0.7	44.2
30X30	0.013	0.33	0.0203	0.52	37.1
30X30	0.012	0.305	0.0213	0.54	40.8
30X30	0.009	0.229	0.0243	0.62	53.1
35X35	0.011	0.279	0.0176	0.45	37.9
40X40	0.01	0.254	0.015	0.38	36
50X50	0.009	0.229	0.011	0.28	30.3
50X50	0.008	0.203	0.012	0.31	36
60X60	0.0075	0.191	0.0092	0.23	30.5
60X60	0.007	0.178	0.0097	0.25	33.9
70X70	0.0065	0.165	0.0078	0.2	29.8
80X80	0.0065	0.165	0.006	0.15	23
80X80	0.0055	0.14	0.007	0.18	31.4
90X90	0.005	0.127	0.0061	0.16	30.1
100X100	0.0045	0.114	0.0055	0.14	30.3
100X100	0.004	0.102	0.006	0.15	36
100X100	0.0035	0.089	0.0065	0.17	42.3
110X110	0.004	0.1016	0.0051	0.1295	30.7
120X120	0.0037	0.094	0.0046	0.1168	30.7
150X150	0.0026	0.066	0.0041	0.1041	37.4
160X160	0.0025	0.0635	0.0038	0.0965	36.4
180X180	0.0023	0.0584	0.0033	0.0838	34.7
200X200	0.0021	0.0533	0.0029	0.0737	33.6
250X250	0.0016	0.0406	0.0024	0.061	36
270X270	0.0016	0.0406	0.0021	0.0533	32.2
300X300	0.0015	0.0381	0.0018	0.0457	29.7
325X325	0.0014	0.0356	0.0017	0.0432	30
400X400	0.001	0.0254	0.0015	0.037	36
500X500	0.001	0.0254	0.001	0.0254	25
635X635	0.0008	0.0203	0.0008	0.0203	25
